Talaria Sting R MX4 (Off-Road) 2025

Talaria Sting R MX4 Off-Road Performance Overview

The 2025 Talaria Sting R MX4 Off-Road represents a major engineering shift in high-performance electric dirt bikes. Built specifically for closed-circuit racing and private land use, this machine replaces traditional combustion engines with a high-torque electric powertrain. The aircraft-grade aluminium chassis provides a rigid foundation, while the updated powertrain handles aggressive trail riding, steep ascents, and technical terrain without the noise, maintenance, or emissions of a petrol bike.

Engineering upgrades embedded in the 2025 edition deliver noticeable improvements over previous iterations. By re-engineering the internal stator wraps and increasing operational voltage efficiency, this system sustains extreme power thresholds without suffering thermal degradation. This means riders can navigate challenging environments with immediate mechanical feedback, avoiding the classic latency problems associated with traditional throttle cables or internal combustion fuel delivery systems.

Technical Specifications and Powertrain Engineering

High-Output 6000W Motor Dynamics

The driving force behind the Talaria Sting R MX4 Off-Road is the air-cooled, mid-mounted synchronous motor. Delivering a peak output of 6000W, this motor generates instant throttle response. Unlike petrol alternatives that require revving to reach peak torque, the MX4 provides linear power delivery from a dead stop. This mechanical layout uses a dual-stage drive system, combining a primary gearbox with a secondary gold O-ring chain drive. This design reduces noise while isolating the motor from direct impact shocks.

Operating with a permanent magnet synchronous system, the motor matches power output to input changes with precise control. Energy losses through heat dissipation drop dramatically compared to traditional belt systems. The copper windings receive juice through a sophisticated controller handling high-amp throughput, maintaining consistent torque across both low-speed technical climbs and wide-open straights.

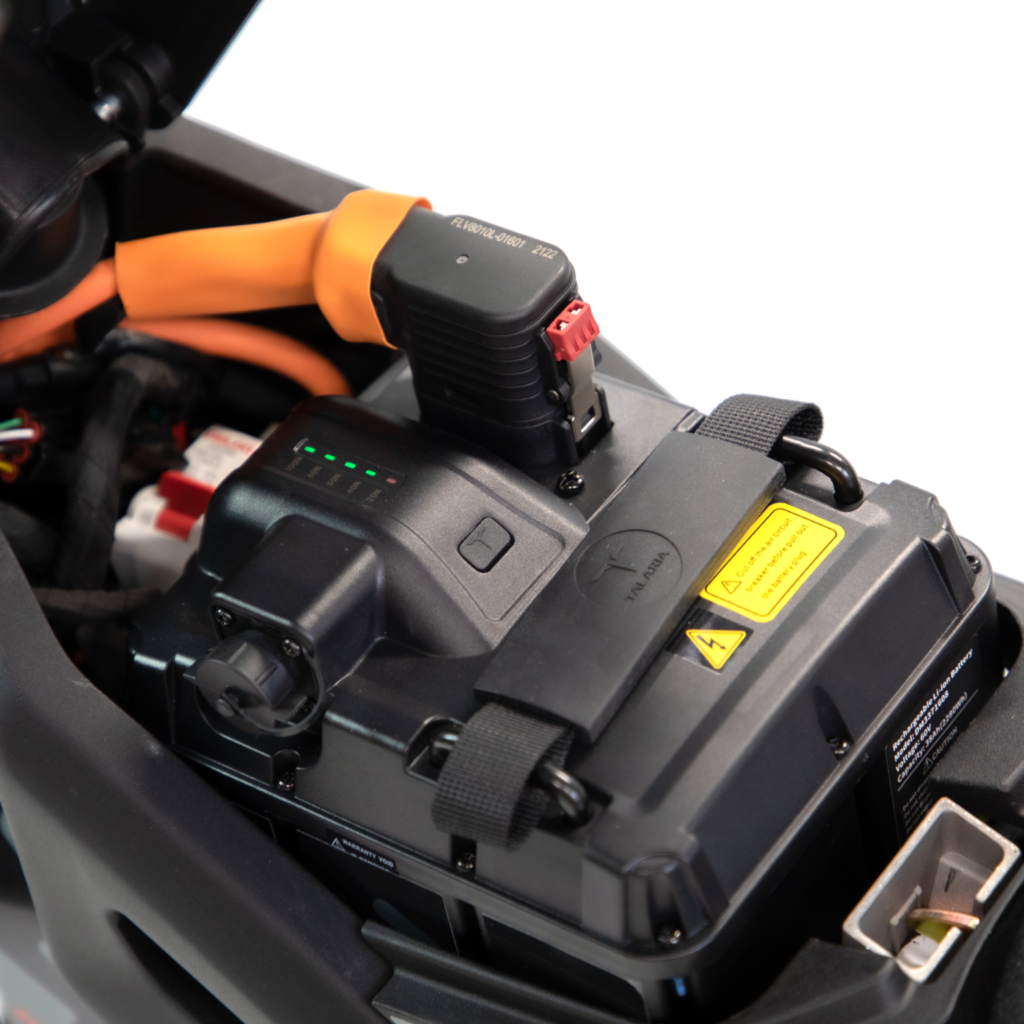

Upgraded 60V 45Ah Lithium-Ion Battery System

Energy storage relies on a high-capacity 60V 45Ah lithium-ion battery pack utilizing premium LG cells. This continuous energy density supports extended off-road sessions, delivering a practical range of 50 to 60 miles per charge depending on ride mode, terrain variation, and rider weight. The battery enclosure features a robust aluminum casing with integrated thermal management sensors to protect against overheating during continuous high-draw climbs.

The internal battery management system (BMS) balances individual cell voltages dynamically during both charging and discharging phases. This active cell regulation extends overall battery health over years of hard riding. Short-circuit protection, over-discharge safety limits, and continuous temperature monitoring come standard inside the sealed assembly, isolating the electrical system from exterior trail grime and moisture ingress.

• Charging Architecture: The included smart charger operates on standard UK mains voltage, completing a full 0-100% charge cycle in 4 to 6 hours.
• Removable Module: The battery pack can be swapped quickly or removed for remote charging away from the vehicle framework.

Chassis, Suspension, and Handling Metrics

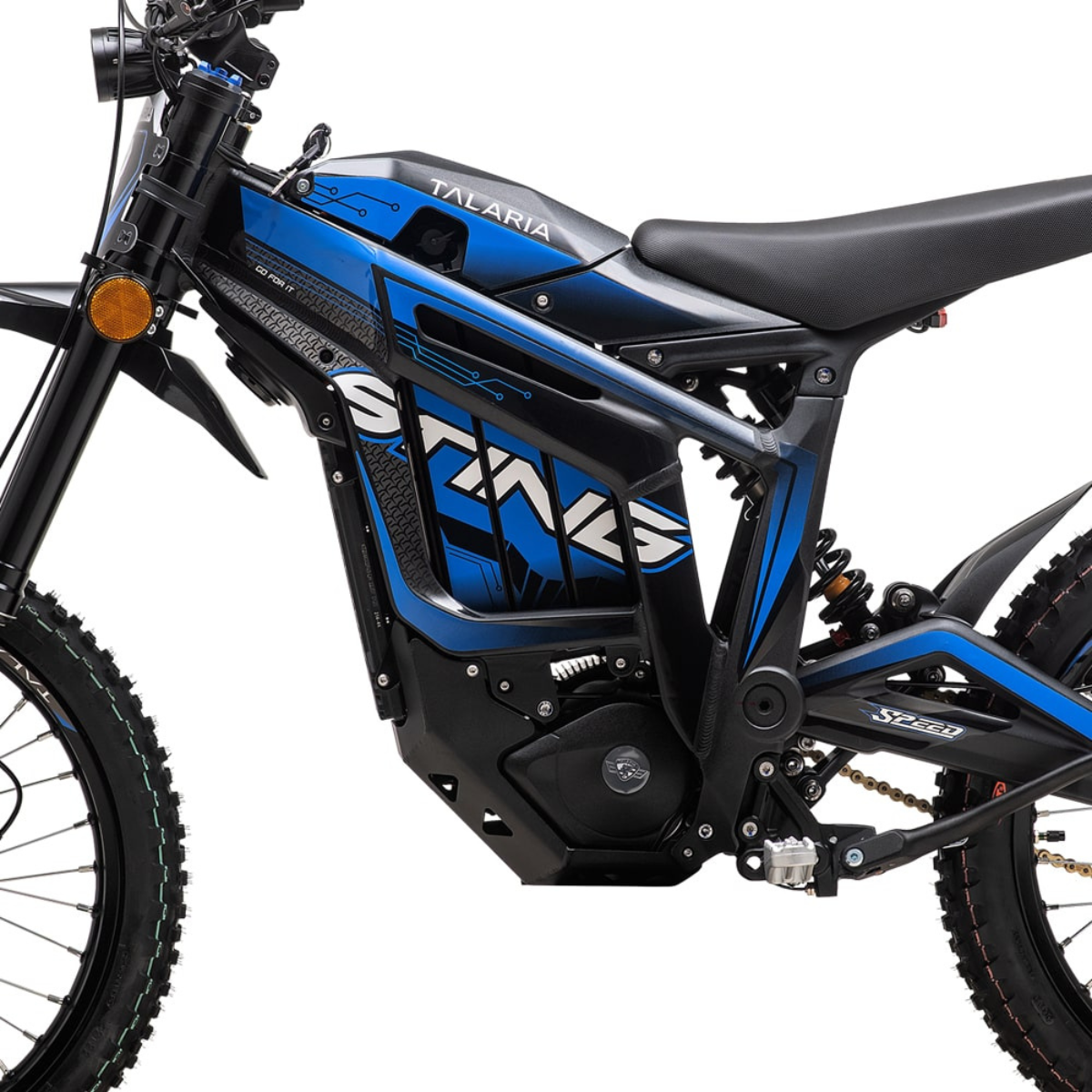

Forged Aluminum Frame Geometry

The core structure of the Talaria Sting R MX4 Off-Road is an aircraft-grade aluminum alloy frame forged under 6,000 tons of pressure. This manufacturing process eliminates internal air pockets, producing high structural rigidity while keeping the total vehicle weight down to 63 kg. This power-to-weight ratio allows for sharp handling and reduces rider fatigue during extended technical maneuvers.

Frame geometric parameters optimize the center of gravity by positioning the motor and battery package directly above the bottom bracket area. This centralized mass layout provides natural balance during mid-air corrections and simplifies tight corner entry on technical single-track paths. The swingarm pivot assembly uses heavy-duty needle bearings to handle continuous torsional loads without binding or developing mechanical play.

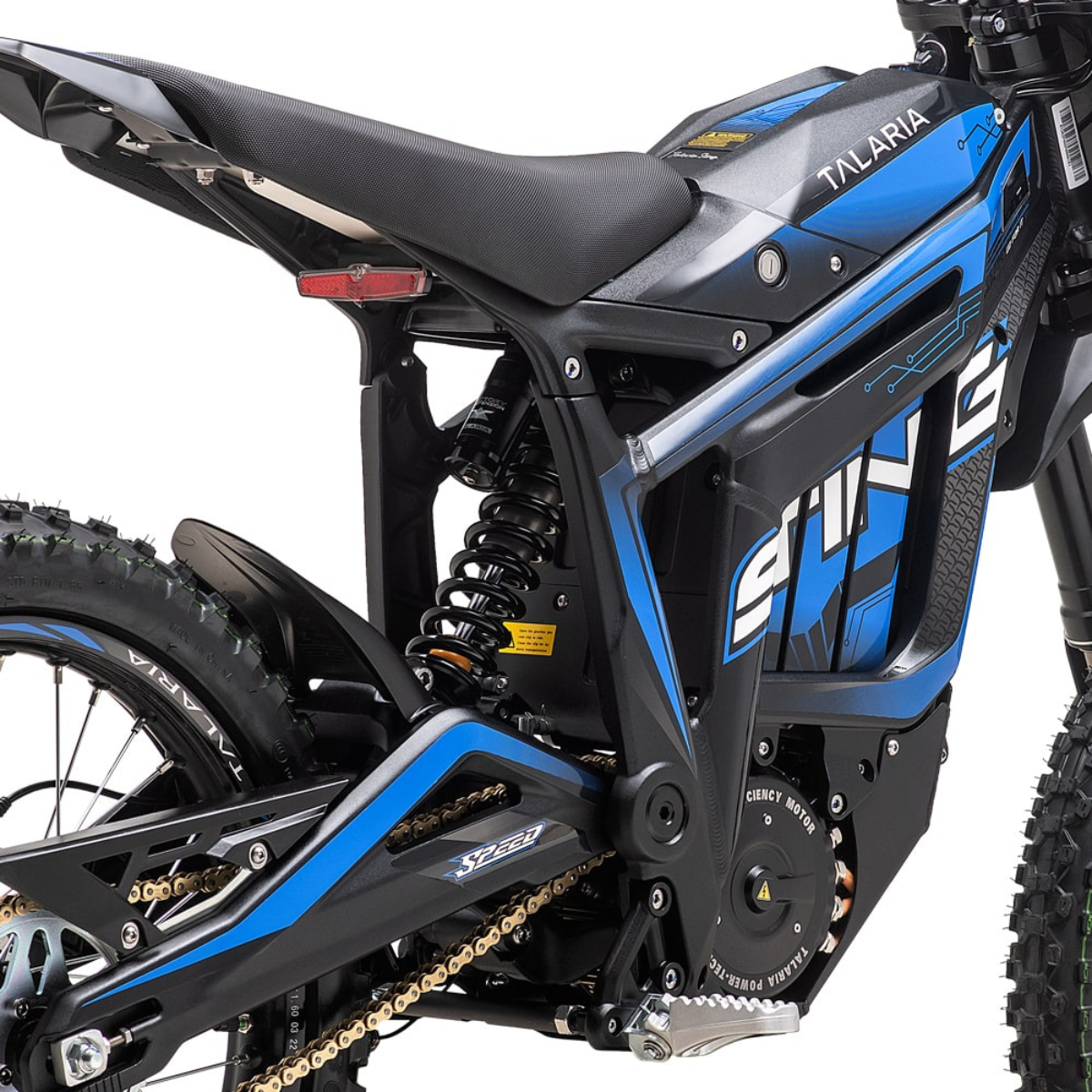

Fully Adjustable Off-Road Suspension

To maintain traction across unstable surfaces, the vehicle features heavy-duty dirt bike suspension components.

• Front End: High-performance inverted front forks with adjustable compression and rebound damping options.
• Rear End: An adjustable monoshock working through a progressive linkage system to absorb heavy landings and rough single-track trail imperfections.
• Ground Clearance: 260 mm of clearance helps prevent underbody high-centering on rocks and fallen logs.

Braking and Traction Hardware

Stopping power is managed by four-piston hydraulic disc brakes fitted to both the front and rear 19-inch spoked wheels. The brake pads feature a sintered compound designed to maintain friction coefficients in wet, muddy, or dusty conditions. Traction is provided by specialized 70/100-19 front and 80/100-19 rear off-road tyres, featuring deep knobs for cornering stability on loose dirt, gravel, and mud.

The braking system uses braided steel hoses that resist expansion under high pressure, maintaining a firm lever feel during steep descents. The oversized 203 mm rotors disperse heat quickly, which minimizes brake fade during long sessions. The spoked wheel hubs are laced with reinforced steel spokes to withstand high impact forces when tracking through rock gardens or tackling technical jumps.

UK Legal Status and Operational Guidelines

Operating high-power electric machinery in the UK requires strict adherence to local legislation. Because the Talaria Sting R MX4 Off-Road operates far outside the boundaries of standard EAPC e-bike restrictions, it is classified strictly as an electric motorcycle.

Private Land Regulations

This specific off-road version is sold exclusively for use on private land with the explicit permission of the landowner. It cannot be legally ridden on public highways, pavements, cycle paths, or bridleways. For riders looking for public road compliance, appropriate protective gear is required, and referencing the Official UK Government Highway Code helps clarify regional access restrictions for motorized vehicles.

Safety and Accessory Integration

Due to the acceleration profiles and top speeds of 50 to 60 mph, riders must always wear appropriate protective equipment. Standard bicycle helmets do not provide adequate protection; a full-face motorcycle helmet meeting ECE 22.06 standards is mandatory. For trail security and maintenance, view our compatible Heavy-Duty Off-Road Locks and Workshop Maintenance Stands to protect your investment.

Frequently Asked Questions

Is the Talaria Sting R MX4 Off-Road legal for UK roads?
No. This specific version is designated for off-road and private land use only. It does not meet EAPC requirements due to its 6000W power output and lack of pedals. To ride a Talaria on public roads, you must purchase the factory-homologated L1e road-legal version, which requires DVLA registration, a CBT license, insurance, road tax, and a rear registration plate.

How long does the battery last on a single charge?
The lithium-ion battery provides an operational range between 50 and 60 miles. Real-world range depends heavily on rider weight, terrain topology, and the selected power mode (Eco vs. Sport). Continuous high-speed riding in Sport mode on soft terrain will reduce total mileage.

What is the maximum load capacity for this vehicle?
The reinforced aluminum chassis supports a maximum structural load capacity of 100 kg (approximately 15.7 stones). Exceeding this limit will accelerate wear on the rear suspension linkage and reduce overall climbing performance.

How does this model compare to older Talaria versions?
The MX4 offers a 30% increase in peak power compared to the original Sting models. The upgraded battery uses higher-density LG cells, the braking rotors are thicker to dissipate heat faster, and the primary gearbox layout is modified to lower noise emissions by several decibels.
