Surron Storm Bee MX 2025

SurRon Storm Bee MX Performance Overview

The 2025 SurRon Storm Bee MX stands as a defining achievement in the full-sized electric motocross sector. Engineered as a direct, high-torque challenger to traditional internal combustion competition machinery, this vehicle scales up electric performance to a standard dirt bike chassis layout. The platform completely eliminates the exhaust layout, cooling fluid checks, oil filtration cycles, and physical clutch demands of petrol-powered alternatives, reducing mechanical friction while providing instant throttle engagement over demanding closed-course circuits.

Structural engineering balances extreme torsional rigidity with precise weight centering. By stacking the heavy internal cell arrays and motor assembly directly along the center axis of the forged chassis, unsprung weight drops significantly to preserve handling control. This centralized configuration allows operators to settle the vehicle reliably into deep loam ruts, track straight across hard-packed stutter bumps, and manage pitch corrections smoothly during high-speed jumps.

Technical Specifications and Powertrain Engineering

High-Output 22.5kW Mid-Drive BLDC Motor

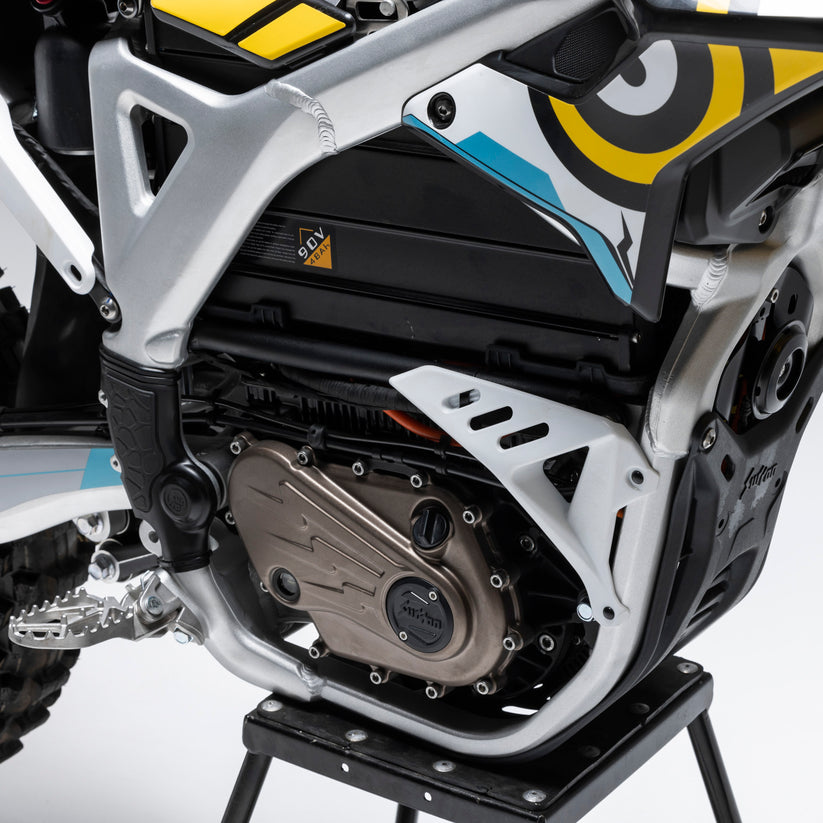

The core mechanical force behind the SurRon Storm Bee MX is a liquid-cooled, brushless direct current (BLDC) mid-motor regulated by a sophisticated Field Oriented Control (FOC) sine wave controller. Delivering a substantial peak output of 22.5kW, this heavy-duty motor generates up to 520 N·m of peak wheel torque, launching the bike to an unrestricted top speed of 68 mph. Power is processed through an internal reduction gearbox hooked directly to a 530 gold O-ring chain drive, optimizing energy conversion and protecting internal components from sudden track impacts.

Because synchronous electric setups deliver peak torque from 0 RPM, acceleration from the starting gate is immediate, propelling the bike from 0 to 50 mph in a brief 3.6 seconds. The integrated liquid-cooling core channels heat away from the stator coils during continuous wide-open throttle usage, preserving stable power output without triggering thermal restrictions under heavy loads.

High-Voltage 104V 55Ah Lithium-Ion Battery Pack

Energy delivery is sustained by a high-capacity 104V 55Ah lithium-ion battery pack assembled with premium traction cells. This high-voltage architecture allows for extreme power draws while lowering internal resistance and structural heat generation. The battery pack delivers a maximum estimated off-road cruising range of up to 75 miles when keeping a steady pace of 31 mph on level surfaces, though real-world track range scales naturally based on soil density and throttle behavior.

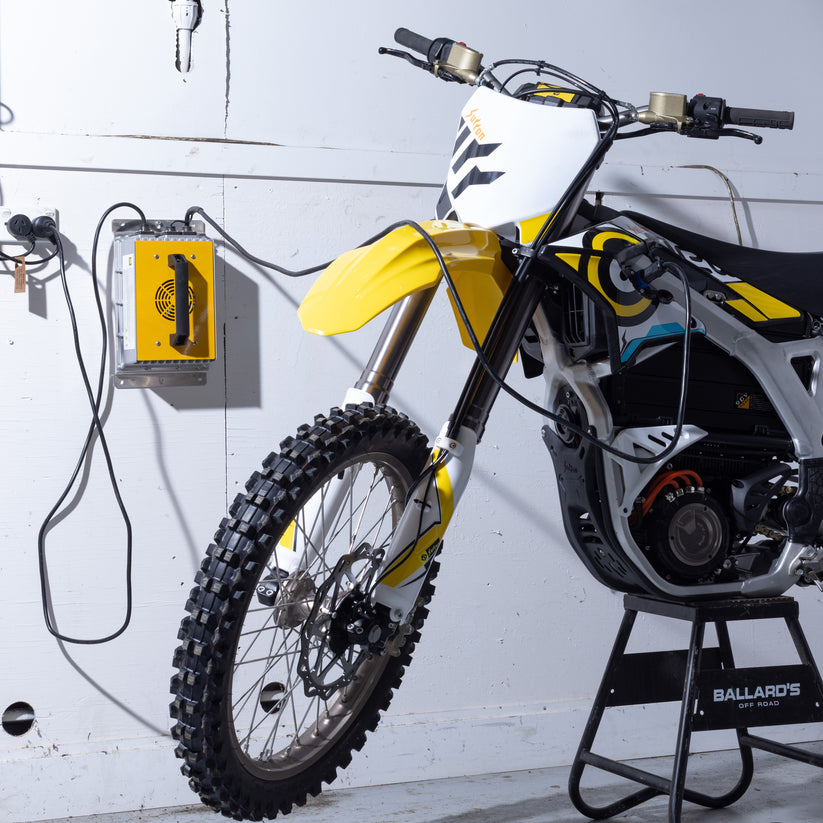

An intelligent solid-state monitoring module oversees individual cell tracking values, actively managing cell balancing loops during charge and discharge cycles. The removable battery design allows operators to execute remote charging routines or swap modules directly in pit lanes. A full 0-100% recharge cycle finishes in approximately 4 hours using the provided smart fast charger connected to a standard mains outlet.

• Custom Performance Profiles: Selectable riding modes include Sport, Rain, and Eco maps to modify power curves, plus an easily accessed Turbo burst setting for sudden power demands.
• Electronic Rider Aids: Factory-installed Acceleration Slip Reduction (ASR traction control) prevents rear tyre spin on slippery ground, while an adjustable Brake Energy Regenerative System (BERS) feeds power back to the cells during deceleration.

Chassis, Suspension, and Handling Metrics

Forged Aluminum Alloy Frame Layout

The skeleton of the SurRon Storm Bee MX features a heavy-duty frame structure forged from high-grade aluminum alloy under thousands of tons of localized pressure. This design methodology ensures reliable structural rigidity to withstand large triple jumps while allowing enough chassis flex to reduce rider strain. The curb weight rests at 127 kg, creating a highly favorable power-to-weight ratio that improves handling agility over traditional internal combustion bikes.

The full-sized 1,430 mm wheelbase matches traditional motocross dimensions, ensuring straight-line tracking stability when riding over deep sand sections or opening up on long straights. A standard 940 mm seat height matches professional ergonomic expectations, allowing riders to move freely across the bike to weight the front wheel during tight cornering sequences.

Competition-Spec Inverted Fork Suspension

To handle severe off-road environments, the chassis uses heavy-duty, long-travel suspension units:

• Front Assembly: Oversized 47 mm inverted front forks providing 290 mm of continuous suspension travel with adjustable compression and rebound damping dials.
• Rear Assembly: A fully adjustable progressive rear monoshock delivering 290 mm of wheel travel to absorb harsh landings.
• Ground Clearance: A high 310 mm base clearance protects the lower liquid-cooling ducts from rock damage or track debris.

Full-Size Motocross Wheelset and Hydraulic Brakes

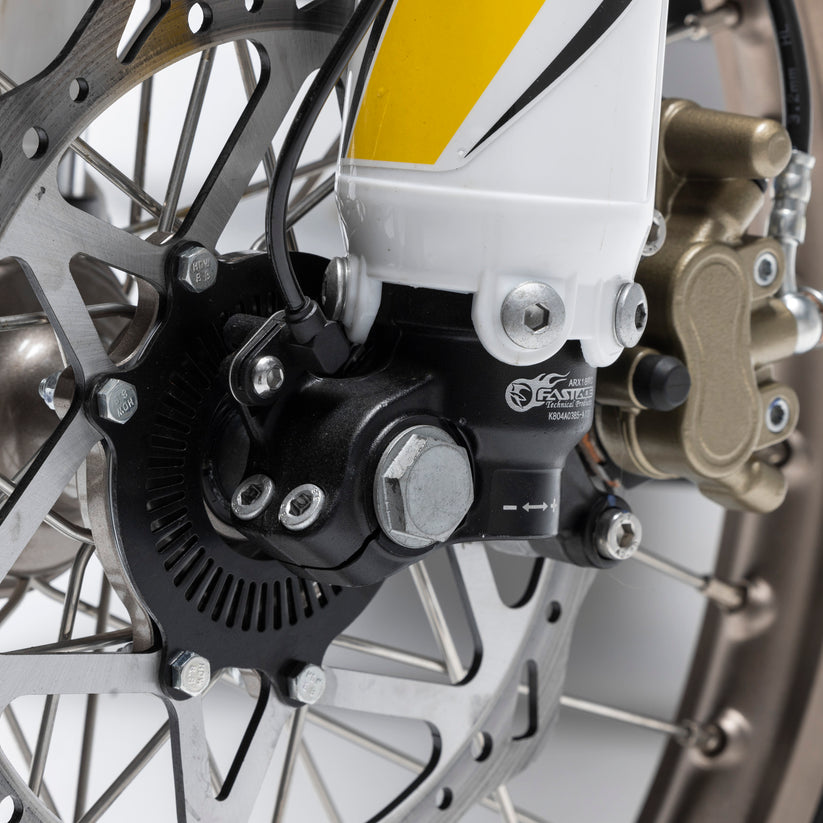

Stopping control is handled by high-specification dual-piston hydraulic disc brakes fitted with large steel rotors on both hubs. Braided stainless lines prevent lever fade during hard braking into corners, ensuring predictable deceleration. The machine rolls on a competition-size 21-inch wire-spoked front wheel and an 18-inch wire-spoked rear wheel, wrapped in aggressive off-road mud tyres with deep knobs for maximum drive on loose dirt.

UK Legal Status and Operational Guidelines

Operating a full-sized electric motocross motorcycle within the United Kingdom requires strict adherence to local traffic laws and vehicle definitions.

Off-Road and Private Land Classification

This competition MX model is designed and sold strictly for closed-course track racing and use on private land with the property owner’s explicit consent. With a 22.5kW peak motor output and a maximum speed of 68 mph, it sits completely outside UK EAPC electric bicycle allowances. It cannot be legally operated on public highways, pavements, cycle paths, or public bridleways. Ridding this non-homologated vehicle on public streets can result in vehicle impoundment and legal penalties. Check the Official UK Government Highway Code for regional vehicle tracking laws.

Mandatory Safety Equipment

Due to the motorcycle-class weight and high top speeds of the Storm Bee MX, standard bicycle gear offers insufficient protection. Operators must always wear an ECE-approved full-face motorcycle helmet, off-road protective boots, knee braces, and heavy-duty chest protection. For track security or paddock maintenance, see our compatible Heavy-Duty Off-Road Locks and Workshop Maintenance Stands.

Frequently Asked Questions

Is the SurRon Storm Bee MX road legal in the UK?
No. This specific MX version is built and sold strictly for off-road closed circuits and private land use. Because its 22.5kW peak output exceeds EAPC allowances and it operates without functional pedals, it is legally classified as an electric motorcycle. Ridding on public streets requires buying the factory-homologated Enduro/Road version, which features a full road lighting kit, indicators, mirrors, DVLA registration, motorcycle insurance, and a valid CBT certificate or motorcycle license.

What does the Turbo button do during a race?

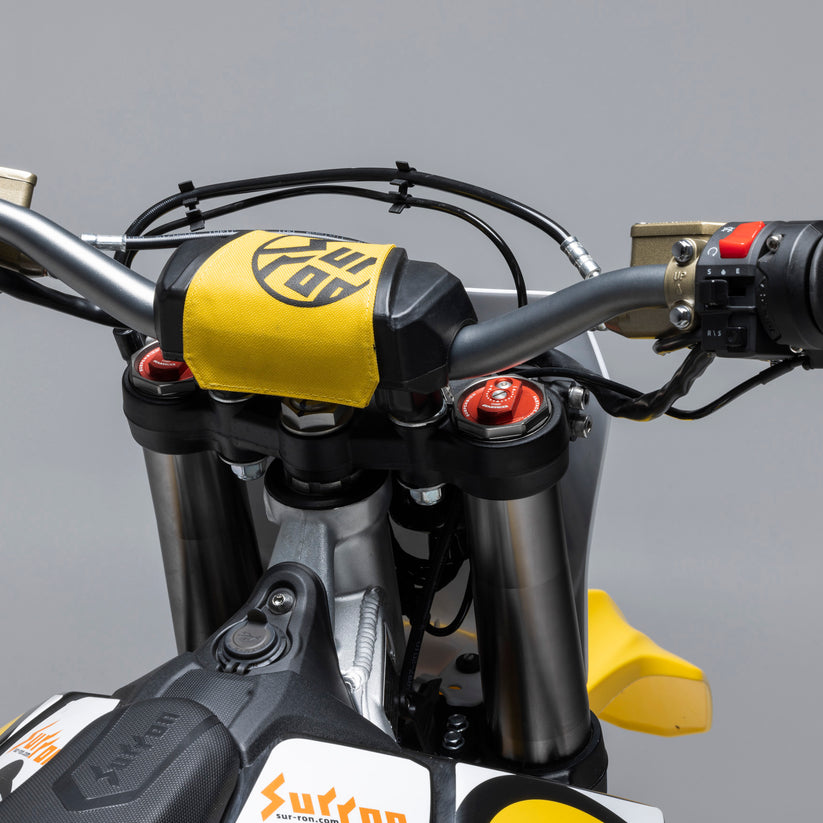

The handlebar-mounted Turbo function allows the operator to access a short burst of extra peak power at full throttle, maximizing acceleration down long straights or when clearing massive jump transitions. This feature is electronically limited to temporary bursts to protect the battery and FOC controller from thermal load build-up.

How does the built-in liquid cooling system function?
Unlike smaller electric bikes that rely on air cooling, the Storm Bee motor uses an integrated liquid cooling core connected to front radiators. A mini electrical pump moves coolant through the internal motor housing to keep core temperatures down, ensuring consistent 22.5kW peak output during intense track sessions.

What is the maximum payload capacity of the frame?
The forged aluminum alloy chassis is structurally rated to support a maximum loading capacity of 100 kg (approximately 15.7 stones). Remaining within this weight limit preserves the proper operation of the 47 mm front forks and allows the progressive rear suspension to absorb heavy landings without bottoming out.
