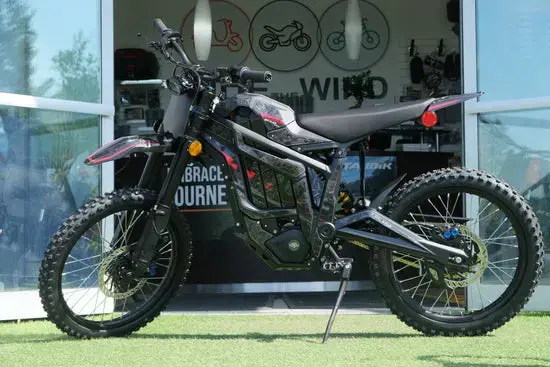

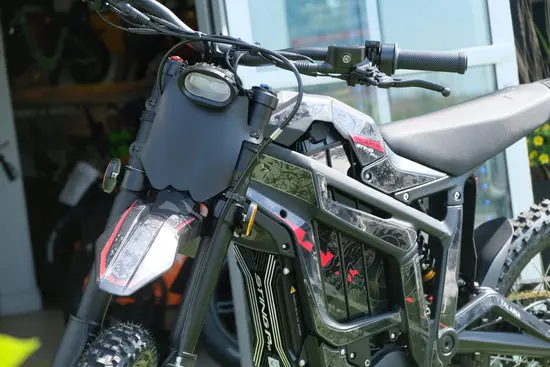

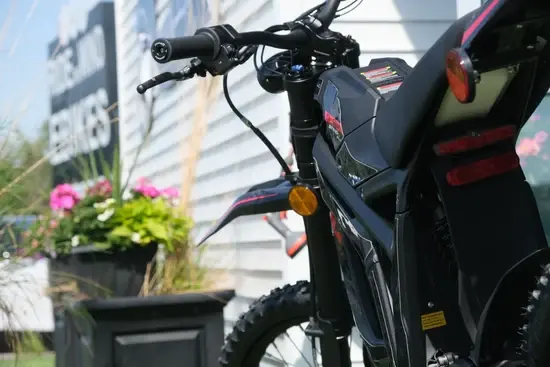

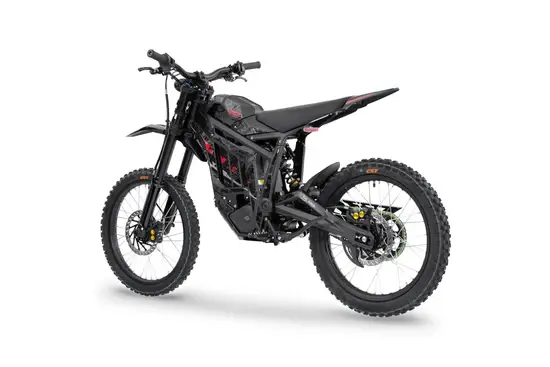

Talaria Sting MX5 | Electric Dirt Bike
Description:
With exceptional high-spec features and an affordable MSRP, the Talaria Sting MX5 Pro is the solution for riders seeking the pinnacle of electric lightweight off-road performance.
KEY FEATURES
- 72V 40Ah battery with Samsung 50S 21700 cells (2,880 WH)
- Improved braking power (220x3mm disc brakes, larger calipers & DOT redesigned master cylinders)
- Adjustable air & spring suspension tuned for optimal off-road performance (improved over MX4)
- 3 riding modes including Hyper mode (unique to the MX5)
- CNC-machined rugged footpegs
- Colour TFT display
- Straight-pull CNC machined wheel hubs with reinforced spokes
- Regenerative braking
- Reinforced swingarm
- Headlight / taillight switch
- Internal reinforced gearbox for quiet, reliable power (no more worn out or snapped belts)
- DC IPM motor
- Aggressive graphics
TECH SPECS
VEHICLE
Chassis Material: 6061 T4 & T6 aluminium alloy
Process Method: Forged under 6,000 tonnes of pressure
Surface Method: Anodizing
Headlight: LED
Front Fork: Adjustable air + spring (220mm travel)
Rear Shock: Adjustable 85mm travel with linkage
Wheel Size: 1.4×19 in. front / 1.6×19 in. rear
Tires: FR 70/100-19 / RR 80/100-19 off-road tires
Max Range: 120 km @ 25 km/h (75 miles @ 15 mph)
Net Weight: 74 kg (165 lbs) with battery
Vehicle Dimensions: 1,880 x 770 x 1,088mm (74 x 30.3 x 42.8 in)
Seat Height: 840mm (33.1 in)
Wheelbase: 1,250mm (49.2 in)
Handlebar Length: 760mm (29.9 in)
Ground Clearance: 300mm (11.8 in)
Max Climbing Angle: 45°
Max Recommanded Load: 100 kg (220 lbs)
Brakes: Hydraulic FR/RR improved 4-piston calipers
Brake Disc: 220mm x 3mm (front/rear)
POWER
Nominal Voltage: 72V (DC)
Maximum Speed: Factory limited to 32 km/h (20 mph)
Torque: 500 Nm
Rated Power: 5.5 kw (Unrestricted)
Peak Power: 13.4 kw (Unrestricted)
Power Mode: Eco / Sport / Hyper
ELECTRONIC
Battery Pack: 72V 40AH
Battery Cells: Samsung 50S 21700
Display: TFT – Speed, battery level, voltage, odometer
Regenerative Braking: 4-level adjustment
MOTOR
Motor size: 13kW
Motor type: DC IPM
Mounting Position: Mid-mounted
Motor Cooling: Air-cooled
TRANSMISSION
Primary Transmission: Gearbox
Drive Transmission: 428-108T Chain
Rear Sprocket: 48T
